OMBRELO™ Stroller: Lightweight and foldable stroller

Overview

OMBRELO™

Light and easy to fold special needs stroller for children and adults. It has innovative seat BodyPrint™ that was equipped with unique belts system. When adjusted perfectly gives the optimal positioning and comfort of use even for all day seating. Adjustable seat depth and backrest height for optimal comfort and correct position while seating. 27° fixed tilt promotes upper body positioning for those with limited trunk stability or upper body strength.

OMBRELO™ stroller is very comfortable and stable with excellent maneuverability.

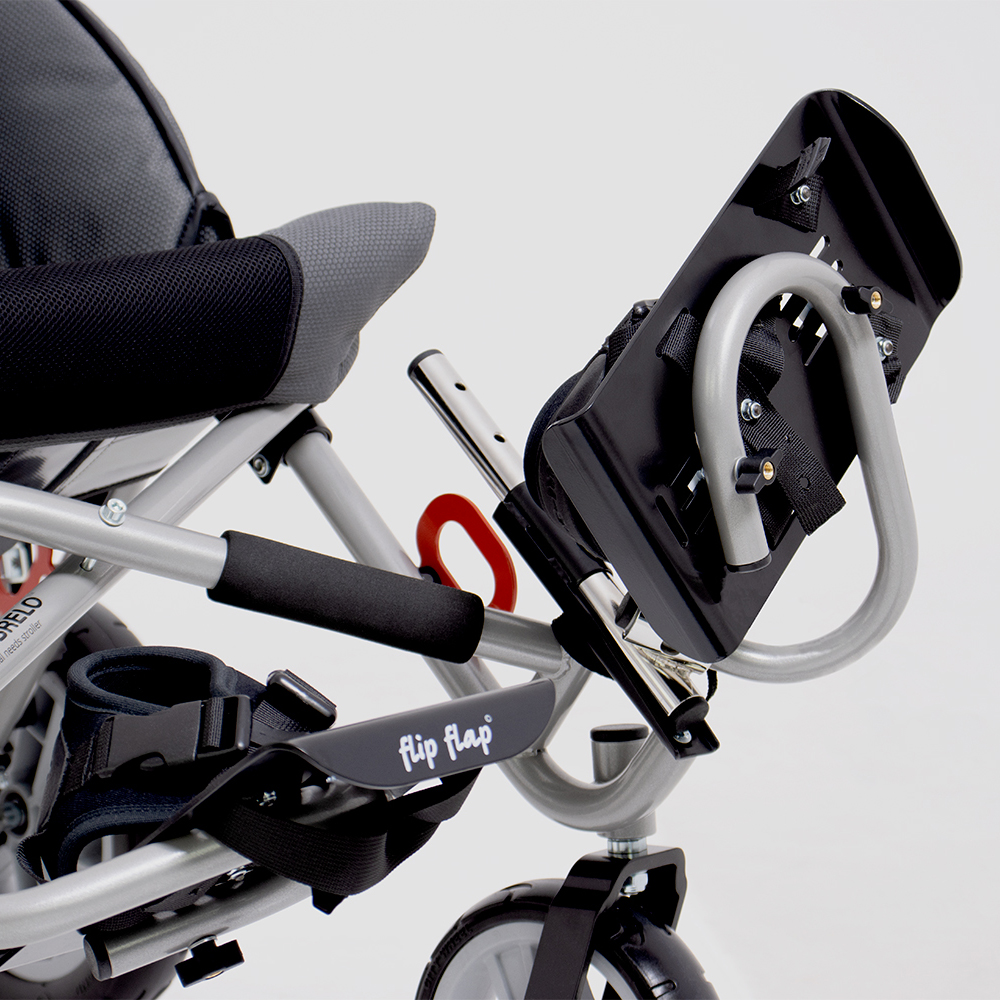

Adjustable swing-away multi footplates for easy come out of the stroller FlipFlap™ allow to adjust each foot separately. They are equipped with foot straps for 2 ways of stabilization.

The stroller is available in 4 sizes.

Size 5 is dedicated for adults with weight up to 120 kg.

Specifications

AVAILABLE SIZES

Symbol	Measurement	Unit	Size 2	Size 3	Size 4	Size 5
W	Indicative user height*	[cm]	100 – 140	110 – 150	120 – 180	130 – 180
A/E	Seat and backrest width	[cm]	29	34	39	43
L	Seat depth	[cm]	28 – 36	28 – 40	28 – 40	34 – 42
C	Headrest height	[cm]	44 – 72	44 – 72	50 – 75	52 – 78
C1	Backrest height (without backrest extension)	[cm]	55	55	58	60
C2	Backrest height (with backrest extension)	[cm]	72	72	75	78
F	Footrests length	[cm]	16 – 64	16 – 64	16 – 64	16 – 64
	Footplate length and width	[cm]	21 x 12	22 x 15	23 x 15	24 x 18
	Push handle height	[cm]	99 – 105	99 – 105	99 – 105	99 – 105
X	Backrest tilt angle	[°]	87, 90, 95	87, 90, 95	87, 90, 95	87, 90, 95
Y	Seat tilt angle	[°]	27	27	27	27
	Maximum user weight	[kg]	45	55	75	120

Note: Measurement tolerance range is +/- 1 cm / ½ in.
* This measurement cannot be the main parameter while choosing the product size.

WEIGHT AND DIMENSIONS

		Size 2	Size 3	Size 4	Size 5
Width	[cm]	57	62	67	72
Length	[cm]	104 – 125	107 – 130	110 – 135	110 – 135
Height	[cm]	101 – 107	101 – 107	101 – 107	101 – 107
Width after folding	[cm]	34	34	35	35
Length after folding	[cm]	133	135	135	136
Height after folding	[cm]	40	40	40	40
Weight	[kg]	18,5	20	21	21

Note: Measurement tolerance range is +/- 1 cm / ½ in.
Note: Approximate values, depending on the product configuration.
Note: The dimensions after folding refer to the stroller without footrests.
