Overview
Empulse R20
Sunrise Medical: Empulse R20
The only power pack that can be folded with your wheelchair.
The new Empulse R20 push aid makes it easier than ever to assist individuals pushing a wheelchair. Whether navigating uphill, downhill, or during long journeys, the R20 supports users and carers in every situation. With its unique folding design, the lightweight R20 weighs under 5 kg, allowing for easy transportation and minimal impact when self-propelling the wheelchair.
Additionally, the R20 is compatible with nearly any wheelchair that features a box frame and has a tube diameter of 22-28 mm.
Specifications
| Dimensions | |
| Seat Width: | 320 - 600 mm |
| Drive Wheel: | 6ʺ |
| Performance/Weights | |
| Max. Range: | 15 km |
| Speed: | 5 km/h (adjustable in three steps: 2/3.7/5 km/h) |
| Batteries: | 5.8 Ah / 36 V (209 Wh) - Lithium Ion |
| Maximum Safe Slope: | 10° / 18% |
| Max Kerb Climb: | 50 mm |
| Electronics: | Charger 100-240 V AC: 36 V & 1.35 A |
| Min. Weight: | 3 kg (Motor and brackets) |
| Total Weight: | 4.5 kg |
| Maximum User Weight: | 190 kg (with wheelchair) |
Features
- The R20 weighs only 4.5 kg, making it highly portable and easy to store.

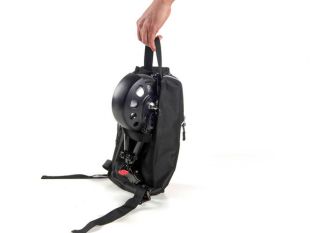

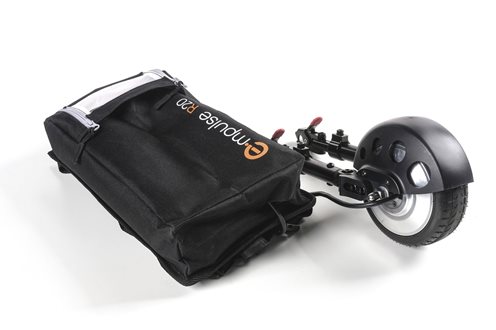

- It features a tool-free two-peg mounting system and a folding design for convenience.
- With a 250W brushless motor and durable lithium-ion battery, it delivers reliable performance.

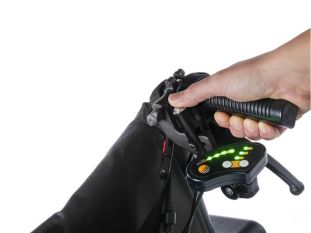

- User-friendly features include a push-button control, an easy-to-read display, and a height-adjustable handle for comfort.
Media
Frequently Asked Questions
Q: What wheelchairs are the R20 compatible with?
A: The R20 is compatible with nearly any wheelchair that features a box frame and has a tube diameter of 22-28 mm.
Q: What happens when the battery is low?
A: The power of the motor will be reduced until the battery is recharged.
Q: What is the range of the R20?
A: In optimum conditions and dependent on good battery health, the R20 can achieve a 15km range.
